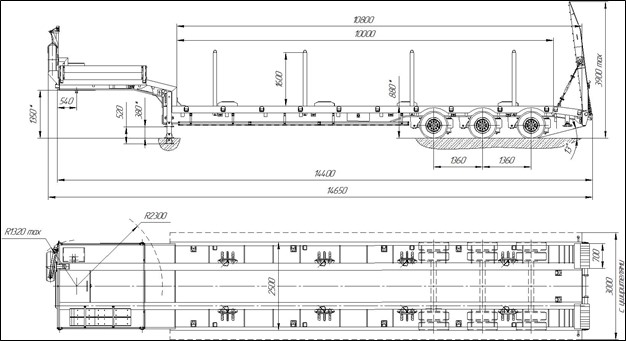

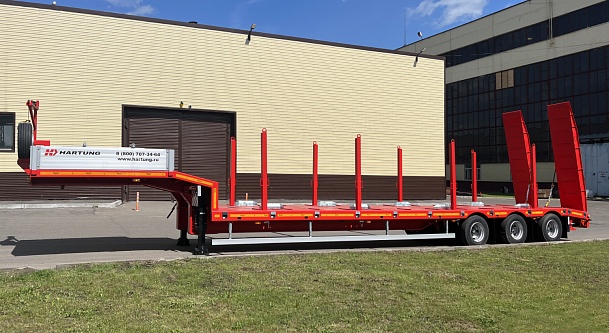

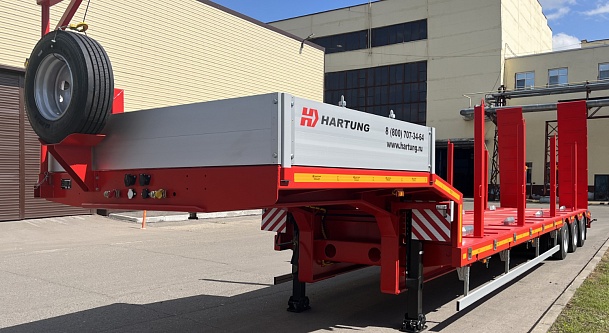

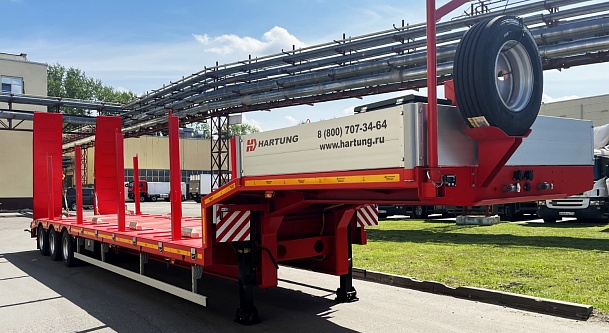

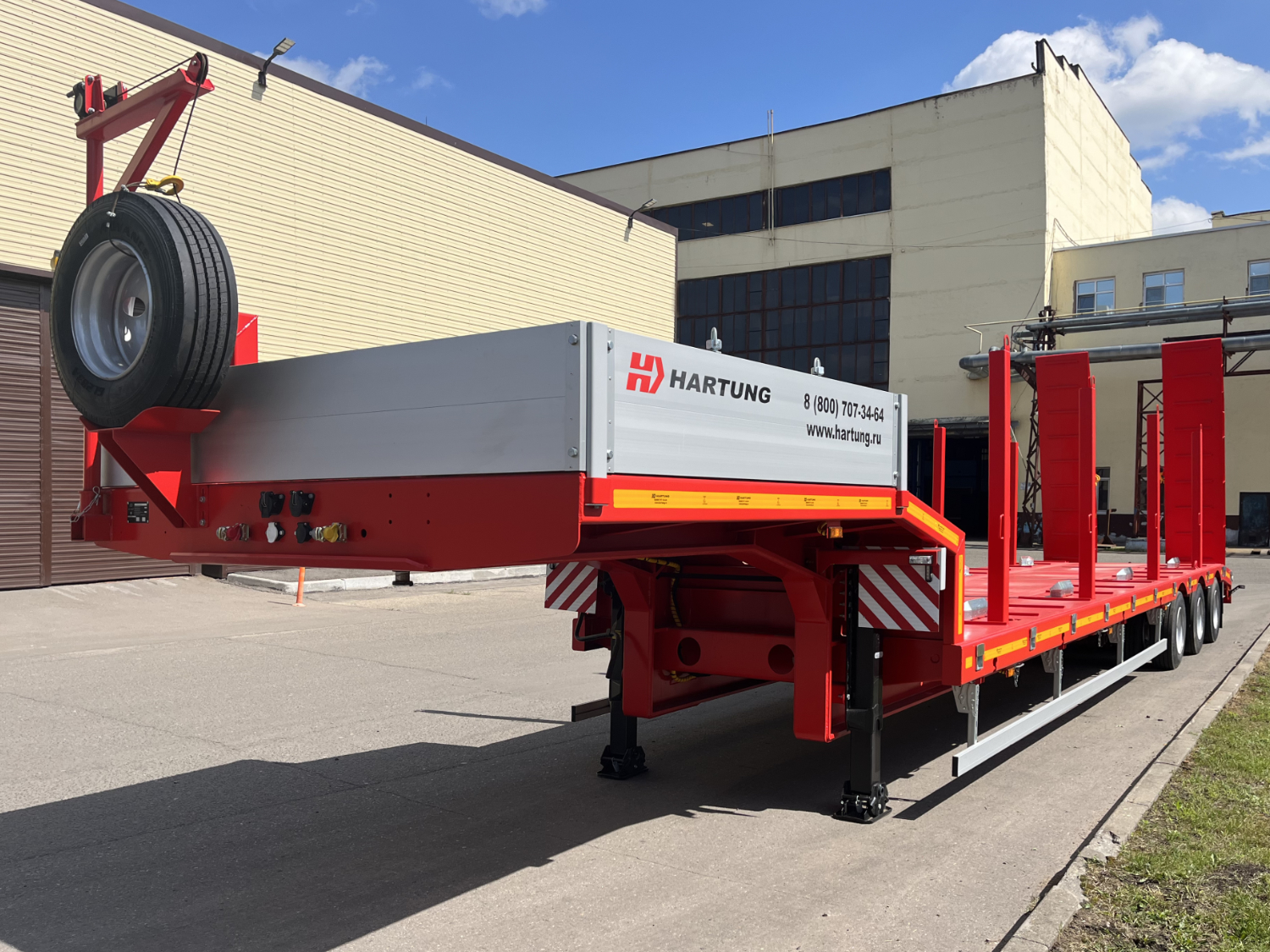

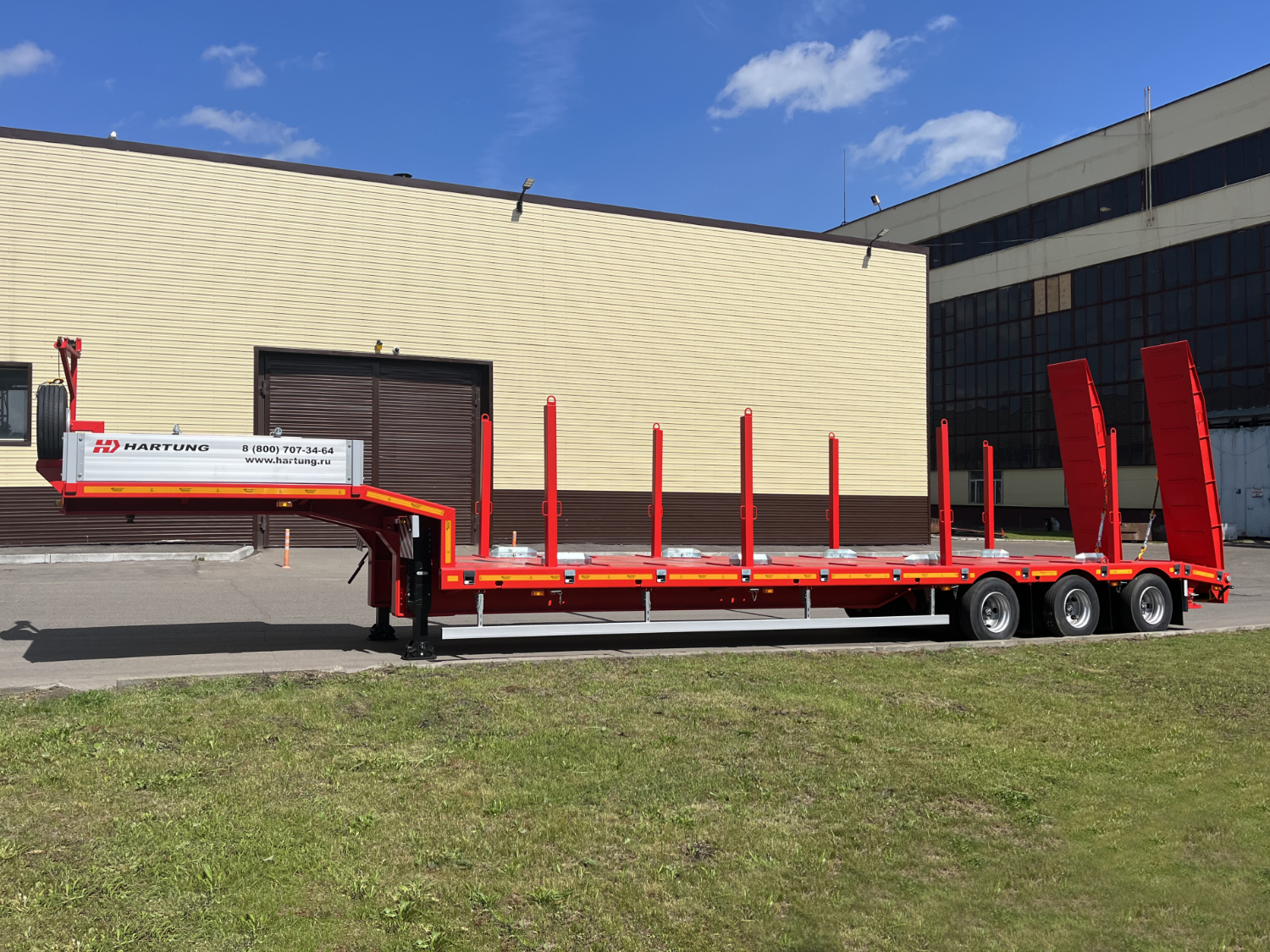

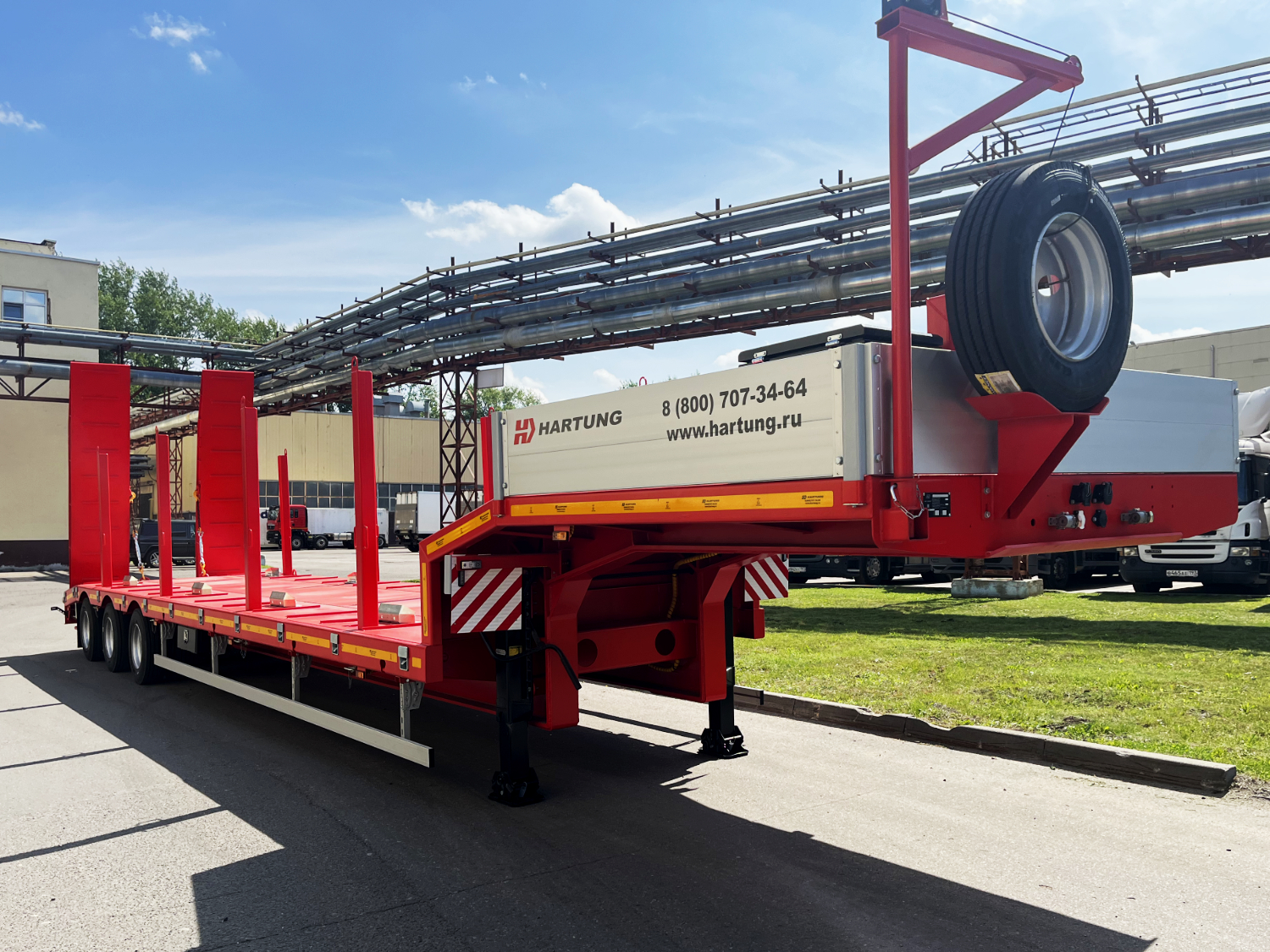

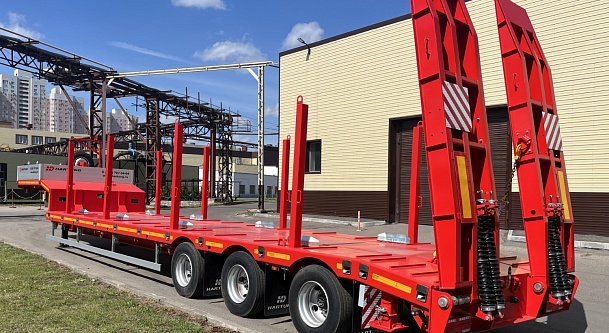

Carrier semitrailer HARTUNG 9104-03, modification 9104-03.003, drawing number H9132.536-0000.000

Characteristics

• Payload, kg 39 000
• Unladen weight of semitrailer, kg 11 000
• Gross weight of semitrailer, kg 50 000
• Load on fifth-wheel coupling, kg 17 000
• Load on bogie, kg 33 000
• Suspension Pneumatic
• Quantity of axles 3
• Quantity of wheels 12+1 spare extra wheel
• Wheels disk wheels, rim 6,75-17,5
• Tyres 235/75 R17,5

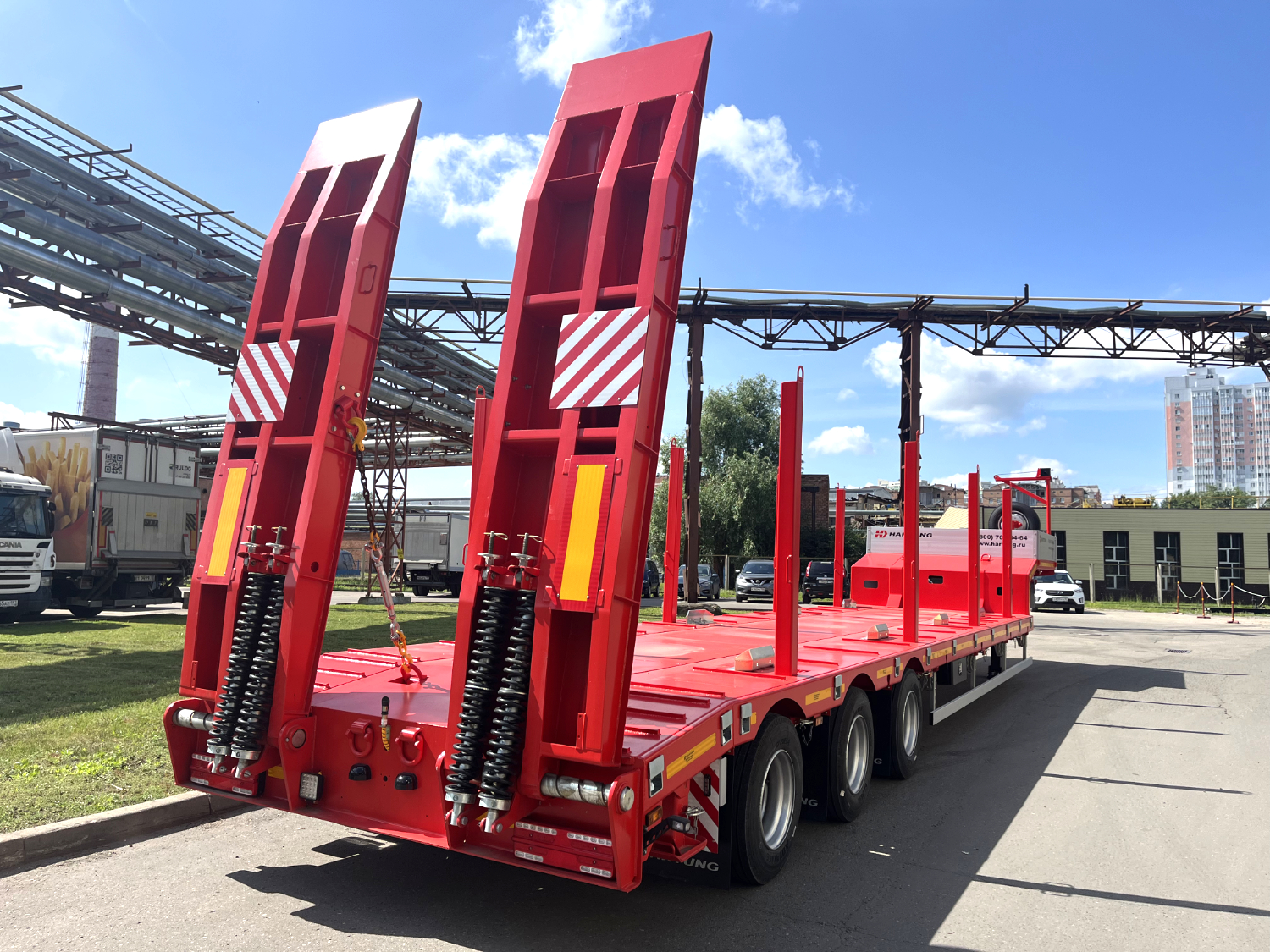

• Drop ramps Mechanical with spring system
• Angle of approach 13º
• Braking system with ABS
• Max speed, km/h 65
• Type of extensions Extensible
• Kingpin’s diameter (inch) 2 (3,5 in ZIP)
• Pneumatic tyres 235/75 R17,5
