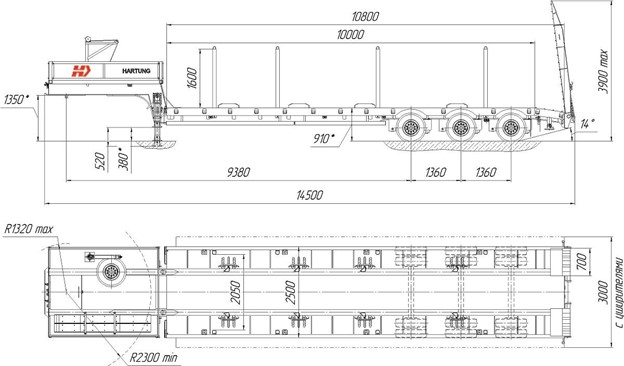

Low bed semitrailer HARTUNG drawing number 9433.566-0000010
Semitrailers HARTUNG
Low bed semitrailer HARTUNG drawing number 9433.566-0000010
On request
Characteristics
- Payload, kg 39 000
- Unladen weight of semitrailer, kg 11 000
- Gross weight of semitrailer, kg 50 000
Characteristics
- Payload, kg 39 000
- Unladen weight of semitrailer, kg 11 000
- Gross weight of semitrailer, kg 50 000
- Load on fifth-wheel coupling, kg 17 000
- Load on bogie, kg 33 000
- Full length (mm) 14 500
- Platform length working/ overall (mm) 10 000/10 800
- Platform width working/ overall (mm) 2 050/2 500
- Overall height (mm) 3 900
- Platform height (mm) 1 350
- Suspension pneumatic
- Quantity of axles 3
- Quantity of wheels 12+1 spare wheels
- Tyres 235/75R17,5
- Drop ramps mechanical
- Angle of approach 13
